Vacuum lifter
Vacuum Lifting Equipment - Tube Lifter (also known as the vacuum tube lifting system) is an advanced device used in production for lifting - moving - lowering heavy objects easily and safely. It works by creating a pressure difference between the inside and outside of the vacuum tube, generating suction force to lift materials without the need for mechanical clamps or manual effort.

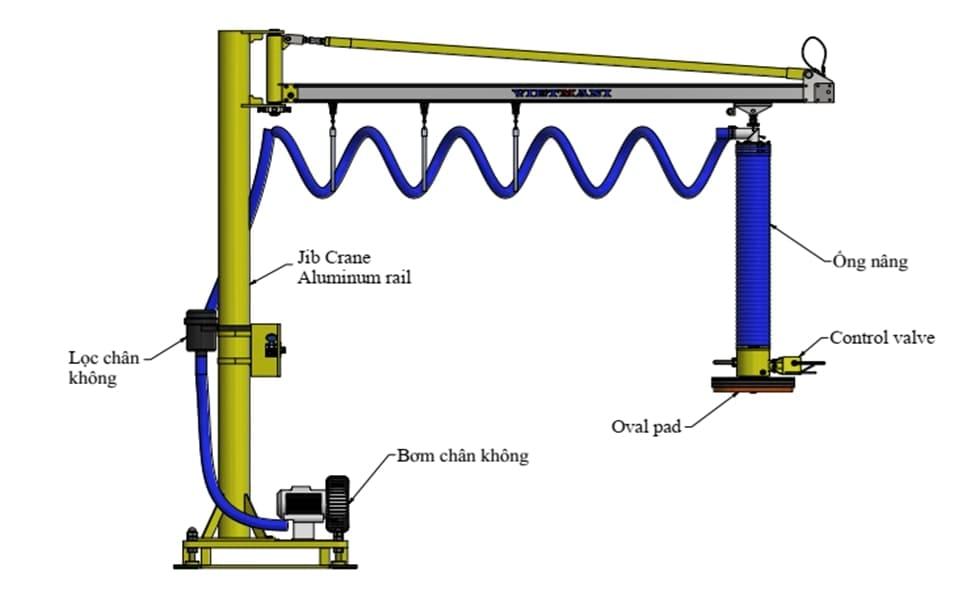

CONSTRUCTION OF THE EQUIPMENT:
(Vietmani Vacuum Lifting Equipment)COMMON APPLICATIONS
- Lifting and moving sacks, boxes, or cartons in warehouses.
- Lifting objects with flat surfaces such as glass, wood, or metal
- Moving fragile products or objects with uneven surfaces.
EQUIPMENT SELECTION GUIDE
| Load range | Model | Specifications |
|---|---|---|
| Tube Lifter 30kg | JB-TL-30-1700 | Max load: 30kg Liftiing height: 1700mm |
| Tube Lifter 45kg | JB-TL-45-1700 | Max load: 45kg Liftiing height: 1700mm |
| Tube Lifter 60kg | JB-TL-60-1700 | Max load: 60kg Liftiing height: 1700mm |
| Tube Lifter 80kg | JB-TL-80-1700 | Max load: 80kg Liftiing height: 1700mm |
| Tube Lifter > 80kg | CONTACT HOTLINE: 0931782489 | |
Contact us
Technical hotline: 0931 782 489
Email: [email protected]
Manufacturing Facility: Phung Xa Industrial Park, Thach That, Hanoi.
MANUFACTURING - INSTALLATION - NATIONWIDE WARRANTY!
